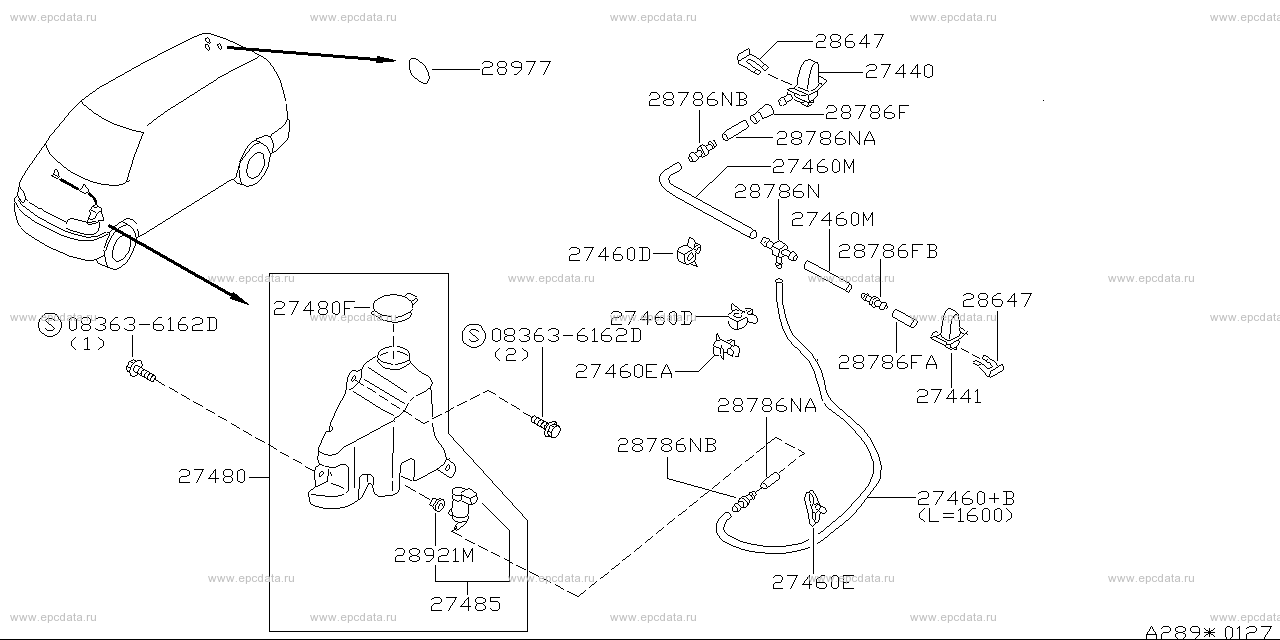

289 - washer (front & rear) (Denso) for Nissan Vanette Serena KVC23

	Frame / Series KVC23 / C23 body W (wagon ) engine CD20T (2000 diesel turbo ) drive 2WD (two-wheel drive ) Manufacture period 06.1991 - 01.1997 grade FX transmission AT (automatic transmission )

---

Applies for models	Manufacture period	Spec
W +4DV +5DV	06.1991 - 08.1993	リヤ ワイパー付き
W +4DV +5DV	08.1993 - 05.1994	リヤ ワイパー付き
W +4DV +5DV	05.1994 - 08.1995	リヤ ワイパー付き
W +4DV +5DV	08.1995 - 01.1997	リヤ ワイパー付き
W +4DV +5DV	01.1997 - 01.1998	リヤ ワイパー付き

Open full screen picture Up to the top

083636162D 27440 - nozzle assembly, washer RH 27441 - nozzle assembly, washer LH 27460 - hose, washer 27460+A - hose, washer 27460+B - hose, washer 27460B - grommet 27460D - clip 27460E - clip 27460EA - clip 27460M - hose assembly, washer 27460Q - hose, washer 27460QA - hose, washer 27461+A - hose, washer 27461+B - hose, washer 27461+C - hose, washer 27461J - joint 27461JA - joint 27461JB - joint 27461N - valve, check 27480 - tank assembly, windshield washer 27480F - cap, windshield washer tank 27485 - pump assembly, washer 27485+A - pump assembly, washer 28460H - grommet 28460HA - grommet 28460HB - grommet 28480F - protector 28647 - retainer, spring nozzle 28775 - nozzle assembly, rear window washer 28786F - connector, hose 28786FA - connector, hose 28786FB - connector, hose 28786N - connector, hose 28786NA - connector, hose 28786NB - connector, hose 28921M - packing, washer motor 28977+A - seal, plate

---

Applies for models	Manufacture period	Spec
W +4DV +5DV	06.1991 - 08.1993	リヤ ワイパー無し
W +4DV +5DV	08.1993 - 05.1994	リヤ ワイパー無し

Open full screen picture Up to the top

083636162D 27440 - nozzle assembly, washer RH 27441 - nozzle assembly, washer LH 27460+B - hose, washer 27460D - clip 27460E - clip 27460EA - clip 27460M - hose assembly, washer 27480 - tank assembly, windshield washer 27480F - cap, windshield washer tank 27485 - pump assembly, washer 28647 - retainer, spring nozzle 28786F - connector, hose 28786FA - connector, hose 28786FB - connector, hose 28786N - connector, hose 28786NA - connector, hose 28786NB - connector, hose 28921M - packing, washer motor 28977 - seal, plate

Vanette Serena KVC23
